Series Vents Micra 100

Basic compact wall AHU with an air flow of up to 100 m³/h

Heat recovery efficiency: 96 %
Heat exchanger type: Counter flow
Sound-insulated casing
Motor type: EC
Bypass: Auto

MICRA 100 is a single-room energy-efficient air handling unit intended for decentralised ventilation of residential and commercial spaces as well as apartments and houses. This unit is ideally suited for creating simple yet highly efficient ventilation systems in newly erected and renovated spaces without requiring duct installation.

FEATURES

Efficient solution for supply and exhaust ventilation of enclosed spaces.
Models with an electric preheater or reheater are available for cold climate conditions.
Modification with an enthalpy heat exchanger available for humid and hot climate conditions.
EC fans with low energy consumption.
Silent operation.

Supply air purification ensured by two integrated G4 and F8 filters.
Optionally – F8 Carbon, H13.
Upgradeable with an extract air duct to provide air extraction from the bathroom.
Easy installation.
Compact size.
Modern design.

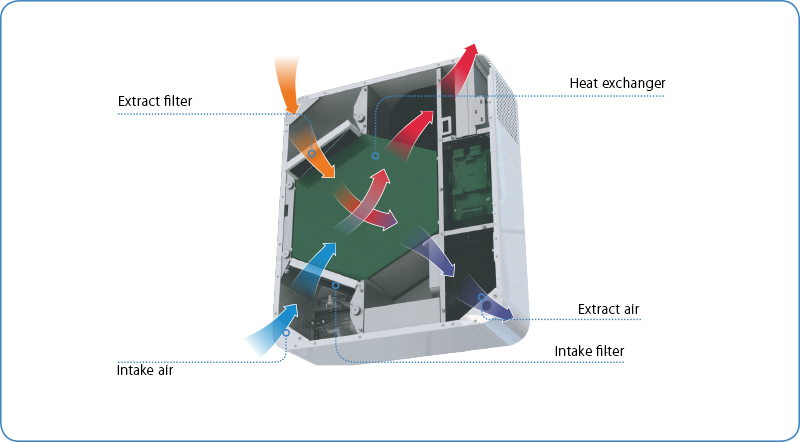

OPERATING LOGIC

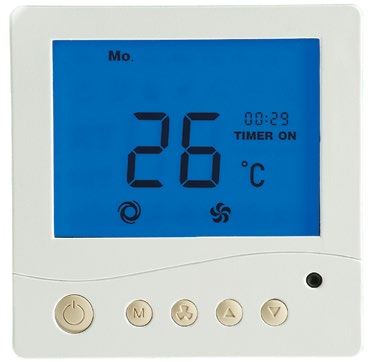

CONTROL AND AUTOMATION

Switching the unit on/off
Speed selection
Reheater temperature setpoint increase (for models equipped with a reheater)
Switching the reheater on/off (for models equipped with a reheater)
Reheater temperature setpoint decrease (for models equipped with a reheater)
Timer on/off
Scheduled operation on/off

CASING

Polymer coated metal casing decorated with an acrylic front panel. Due to modern design, the unit matches well with any interior. Heat and sound insulation is ensured by a layer of 10 mm cellular synthetic rubber. The front panel provides convenient access for filter maintenance and has a lock for extra security. The unit has two ø 100 mm spigots for fresh air intake and stale air extraction outside. The third ø 100 mm spigot (included in the delivery set) can be additionally fitted to the unit to connect the extract air duct from the bathroom.

FILTERS

Intake air cleaning is provided by G4 and F8 panel filters. To meet more stringent air purity requirements, an F8 filter can be replaced with an H13 filter (purchased separately). Extract air is cleaned by a panel G4 filter.

HEAT EXCHANGER

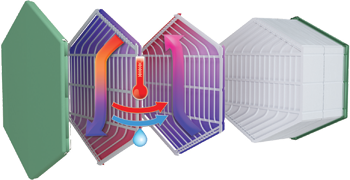

The MICRA 100 units are equipped with a counter-flow heat exchanger with a polystyrene core. In the cold season the extract air heat is transferred to the intake air stream which reduces heat losses through ventilation. However, this can lead to formation of condensate that is collected in a special drain pan and is drained off outside through the exhaust air duct. In the warm season the ambient air heat is transferred to the extract air. This allows for a considerable reduction of the supply air temperature which, in turn, reduces the air conditioning load.

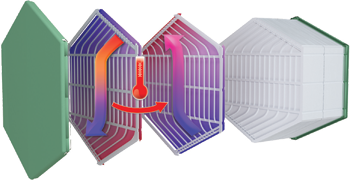

The MICRA 100 ERV unit is equipped with a counter-flow enthalpy heat exchanger. In the cold season the extract air heat and moisture are transferred to the supply air stream through the enthalpy heat exchanger reducing the heat losses through ventilation. The ambient air heat and moisture are transferred to the extract air through the enthalpy heat exchanger in the warm season. This allows for a considerable reduction of the supply air temperature and humidity which, in turn, reduces the air conditioning load.

SUPPLY AND EXHAUST AIR DAMPERS

The unit is equipped with supply and exhaust air dampers which activate automatically to prevent drafts while the unit is off.

FREEZE PROTECTION

The MICRA 100 unit features an exhaust air temperature sensor downstream of the heat exchanger which disables the supply fan to let the warm extract air raise the heat exchanger temperature. Then the supply fan is turned on and the unit reverts to normal operation. Freeze protection for MICRA 100 E1 units is implemented with a preheater.

The units feature efficient electronically commutated (ЕС) motors with an external rotor and impellers with forward curved blades. In addition to that, the efficiency of electronically commutated motors reaches very impressive levels of up to 90 %.

NE MICRA 100 HEATER FOR CONDENSATE FREEZE PROTECTION (OPTIONAL)

Operation in a cold climate may result in condensate freezing in the exhaust air duct and the external hood. Therefore, it is recommended to install the NE MICRA 100 heater (purchased separately) to prevent icing.

VENTILATION SYSTEM ARRANGEMENT

MICRA 100 application in an office space Each space requiring proper ventilation should be equipped with a single or several MICRA 100 units. A single unit is capable of ensuring efficient ventilation in spaces with floor area up to 100 m². MICRA 100 units can be upgraded with a bathroom extract air duct. For this, the units can be additionally equipped with an optional ø 100 mm spigot (included in the delivery set).

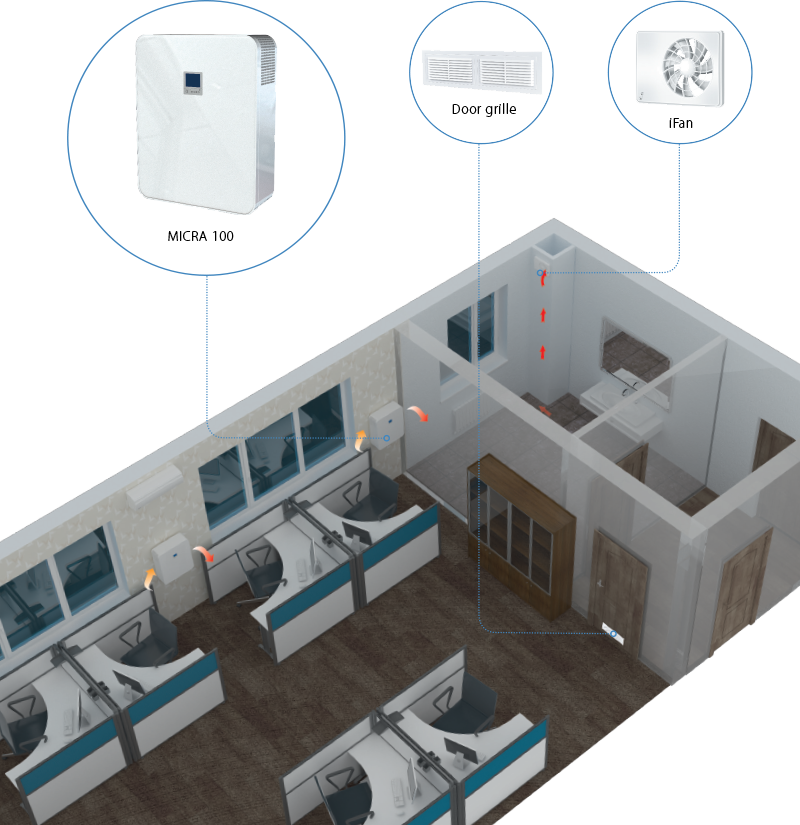

MICRA 100 application in an office space

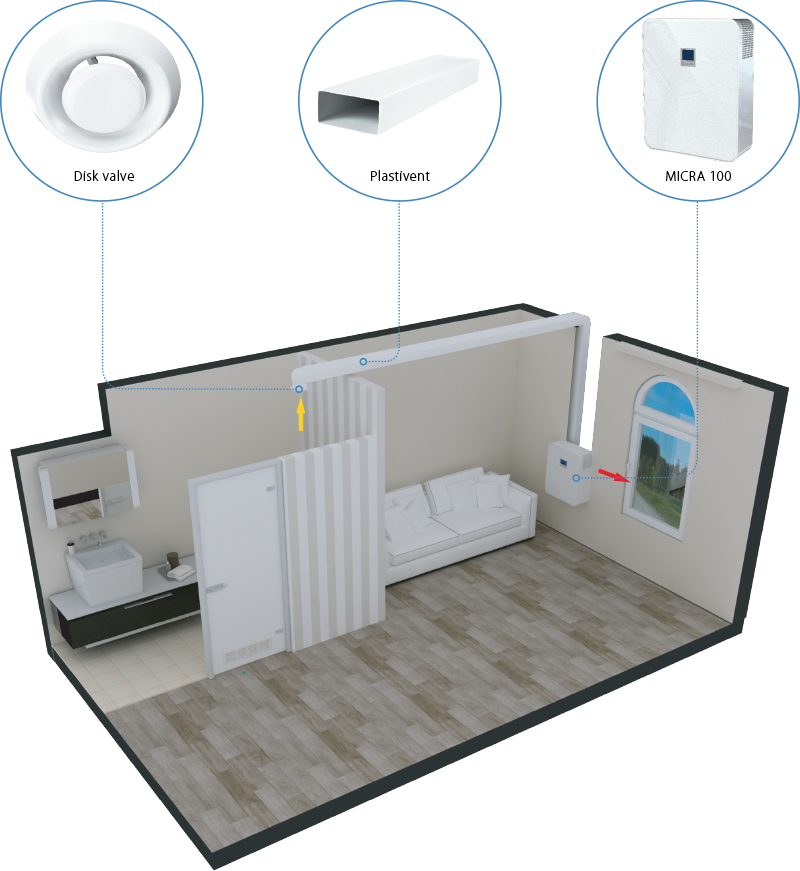

MICRA 100 application in a compact residential space

Lineup Vents Micra 100	Rated power, W	Maximum airflow, m³/h	Sound pressure level LpA at 3 m, dB(A)	Heat recovery efficiency, %	Heat recovery efficiency, max, %	Preheater	Reheater	Control	Mounting
Vents Micra 100	45	100	39	98	98			Built-in control panel Remote Control Wired control panel	Wall
Vents Micra 100 ERV	45	100	39	96	96			Built-in control panel Remote Control Wired control panel	Wall
Vents Micra 100 E	45	100	39	98	98		Electric	Built-in control panel	Wall
Vents Micra 100 E ERV	45	100	39	96	96		Electric	Built-in control panel Remote Control Wired control panel	Wall
Vents Micra 100 E1	45	100	39	98	98	Electric		Built-in control panel Remote Control Wired control panel	Wall
Vents Micra 100 E1 ERV	45	100	39	96	96	Electric		Built-in control panel Remote Control Wired control panel	Wall
