Series Vents Micra 100 WiFi

Name: Vents Micra 100 WiFi
Brand: VENTS
Availability: InStock

Premium compact wall AHU with an air flow of up to 100 m³/h

Heat recovery efficiency: 96 %
Heat exchanger type: Counter flow
Sound-insulated casing
Motor type: EC
Bypass: Auto

Micra 100 WiFi is an energy-efficient air handling unit for supply and exhaust ventilation intended for single-room ventilation of residential and commercial spaces as well as apartments and houses. This air handling unit is ideally suited for simple yet high-efficient ventilation in brand new and renovated spaces with no need of ductwork installation.

FEATURES

Efficient solution for supply and exhaust ventilation of separate spaces.
Electric pre-heater or re-heater modification available for cold climate conditions.
Heat exchanger with an enthalpy membrane modification available for humid and hot climate conditions.
Low-energy ЕС fans.

Excellent noise control (25-38 dBA).
Supply air purification ensured with two built-in G4 and F8 filters (optional H13, F8 Carbon)
Upgradeable with an exhaust duct to provide air extraction from the bathroom. Easy installation.
Compact size. Modern design. Control with the mobile application Android / IOS.

DESIGN

CASING

Polymer coated metal casing decorated with an acrylic front panel. Thanks to the modern design the unit can seamlessly blend with most interior design. Heat and sound insulation is provided with 10 mm cellular synthetic rubber layer. The front panel ensures convenient access for filter maintenance and has a lock for extra security. The unit has two ø 100 mm inlet and outlet spigots for fresh air intake and stale air extraction outside. The third ø 100 mm spigot (included) can be additionally fitted to the unit to connect an exhaust air duct from the bathroom.

AIR FILTRATION

G4 and F8 panel filters provide supply air filtration. To meet more stringent air purity requirements a F8 filter can be replaced with an H13 or F8 Carbon (purchased separately). G4 panel filter provides extract air filtration.

FANS

The units feature efficient electronically commutated (ЕС) motors with external rotor and impellers with forward curved blades. The stateof-the-art motor design offers the very best energy efficiency performance. EC motors are distinguished with high performance and totally controllable speed range. In addition to that the efficiency of electronically commutated motors reaches very impressive levels of up to 90 %.

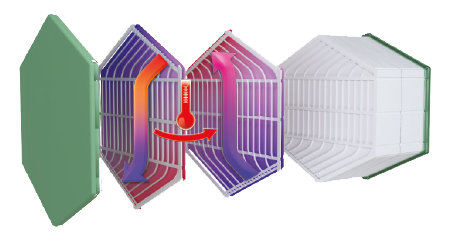

HEAT EXCHANGER

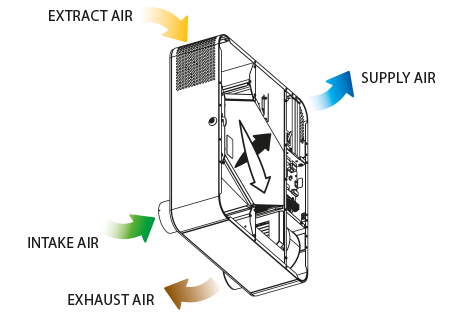

Micra 100 WiFi units are equipped with a counter-flow heat exchanger with a polystyrene core. In the cold season the extract air heat is captured and transferred to the supply air stream, which reduces the ventilation-generated heat losses. However, this process may be associated with condensation, which is collected in a special drain pan and evacuated outside via the exhaust air duct. In the warm season the ambient air heat is transferred to the exhaust air stream.

NE MICRA 100 HEATER FOR CONDENSATE FREEZING PROTECTION (OPTIONAL)

Operation in a cold climate may result in condensate freezing in the exhaust air duct and the external hood. Therefore, it is recommended to install the NE Micra 100 heater (purchased separately) to prevent icing.

PRE-HEATING

Micra 100 E WiFi, Micra 100 E2 WiFi units are equipped with an electric pre-heater for freeze protection of the heat exchanger.

RE-HEATING

Micra 100 E1 WiFi, Micra 100 E2 WiFi units feature an electric re-heater to raise the supply air temperature as necessary.

FUNCTIONING

CONTROL PANEL

Turning unit on/off
Speed selection
Increasing temperature set point for the re-heater (available for the models with a re-heater)
Turning re-heater on/off (available for the models with a re-heater)
Decreasing temperature set point for the re-heater (available for the models with a re-heater)
Turning timer on/off
Activation/deactivation of the scheduled operation mode

CONTROL

The unit is equipped with a control panel.
The remote control is supplied as standard.
Wi-Fi communication.
Controlled by Android or iOS smartphoneor tablet.

FUNCTIONS

Speed changeover.
Filter replacement indication.
Alarm indication.

Speed setting.
Timer.
Weekly schedule.

FREEZE PROTECTION

Micra 100 WiFi features an exhaust air temperature sensor downstream of the heat exchanger, which disables the supply fan to let the warm extract air warm up the heat exchanger. After that the supply fan turns on and the unit reverts to the normal operation mode. Overheating protection for Micra 100 E WIFI and Micra 100 E2 WIFI is implemented with a pre-heater.

MOUNTING EXAMPLE

Each space requiring ventilation is equipped with one or several Micra 100 WiFi units. A single unit is capable to ensure efficient ventilation in spaces with floor area up to 100 m² . Micra 100 WiFi units can be upgraded with a bathroom exhaust air duct. To enable such a configuration the units can be additionally equipped with the optional ø 100 mm spigot (supplied as standard).

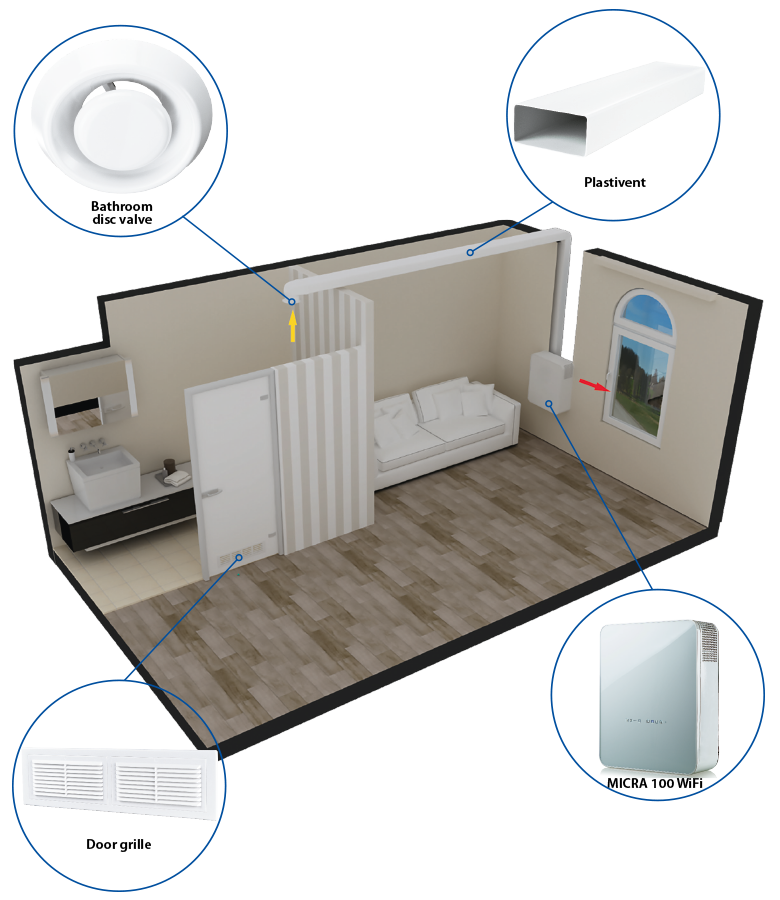

Micra 100 WiFi deployment in a compact residential space

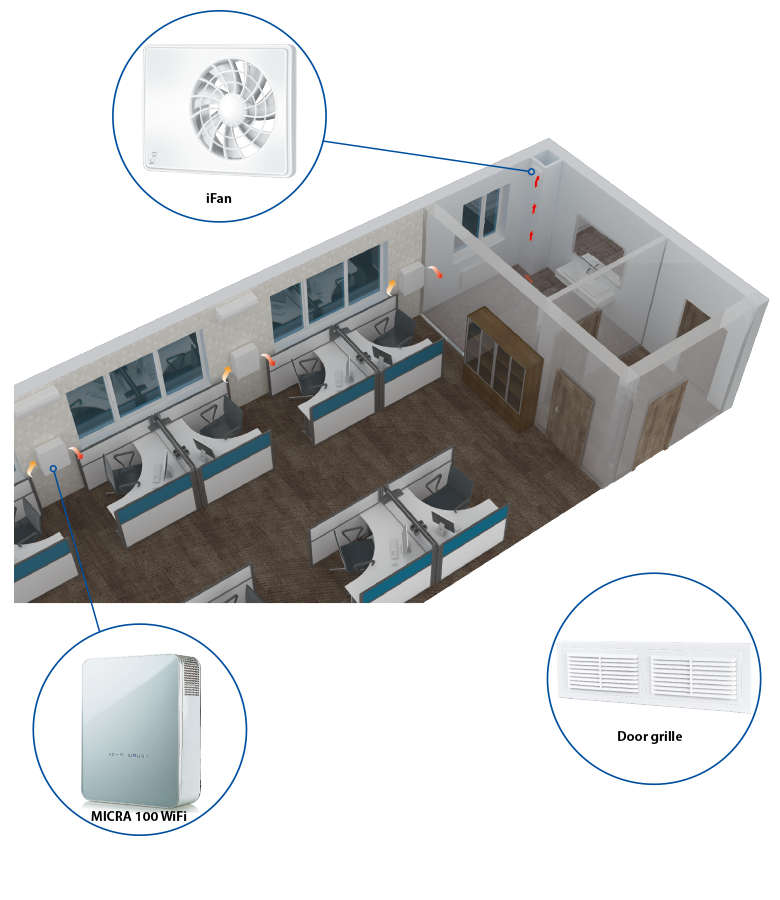

Micra 100 WiFi mounting example in the office

Lineup Vents Micra 100 WiFi	Rated power, W	Maximum airflow, m³/h	Sound pressure level LpA at 3 m, dB(A)	Heat recovery efficiency, %	Preheater	Reheater	Control	Mounting
Vents Micra 100 WiFi	53	100	39	98			Smartphone	Wall
Vents Micra 100 ERV WiFi	53	100	39	96			Smartphone	Wall
Vents Micra 100 E WiFi	53	100	39	98		Electric	Smartphone	Wall
Vents Micra 100 E ERV WiFi	53	100	39	96		Electric	Smartphone	Wall
Vents Micra 100 E1 WiFi	53	100	39	98	Electric		Smartphone	Wall
Vents Micra 100 E1 ERV WiFi	53	100	39	96	Electric		Smartphone	Wall
Vents Micra 100 E2 WiFi	53	100	39	98	Electric	Electric	Smartphone	Wall
Vents Micra 100 E2 ERV WiFi	53	100	39	96	Electric	Electric	Smartphone	Wall
