Series Vents Micra 110

Series Vents Micra 110 - Basic - Decentralized HRU for residential and commercial buildings
Wall or flush-mounted AHU with an air flow of up to 100 m³/h
  • Heat recovery efficiency: 85 %
  • Heat exchanger type: Counter flow
  • Sound-insulated casing
  • Motor type: EC
  • Humidity sensor: Built-in
FEATURES
  • High efficiency ventilation of a single room or a small appartment.
  • Flush or surface mounting option.
  • Optional connection of supply and extract 75 mm semi-rigid air ducts for flush mounted Micra 110 V1 unit.
  • Optional connection of 100 mm extract air duct for surface mounted Micra 110 unit.
  • Low noise level from 10 dBA at 3 m.
  • High level of wind protection.
  • Clean air with an ISO ePM1 65% / F7 supply filter.
  • Easy installation.
AIR FILTRATION
  • Supply air is cleaned by a coarse 90 % / G4 panel filter. An ePM1 65 % / F7 filter can be installed as an option.
  • Extract air purification is performed by a coarse 90 % / G4 cassette filter.

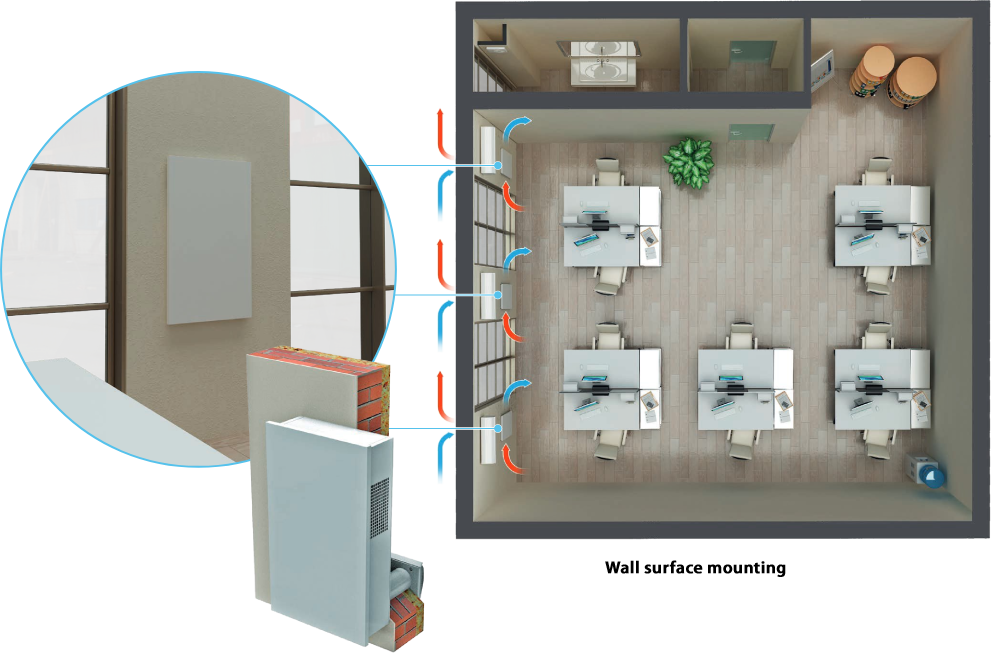

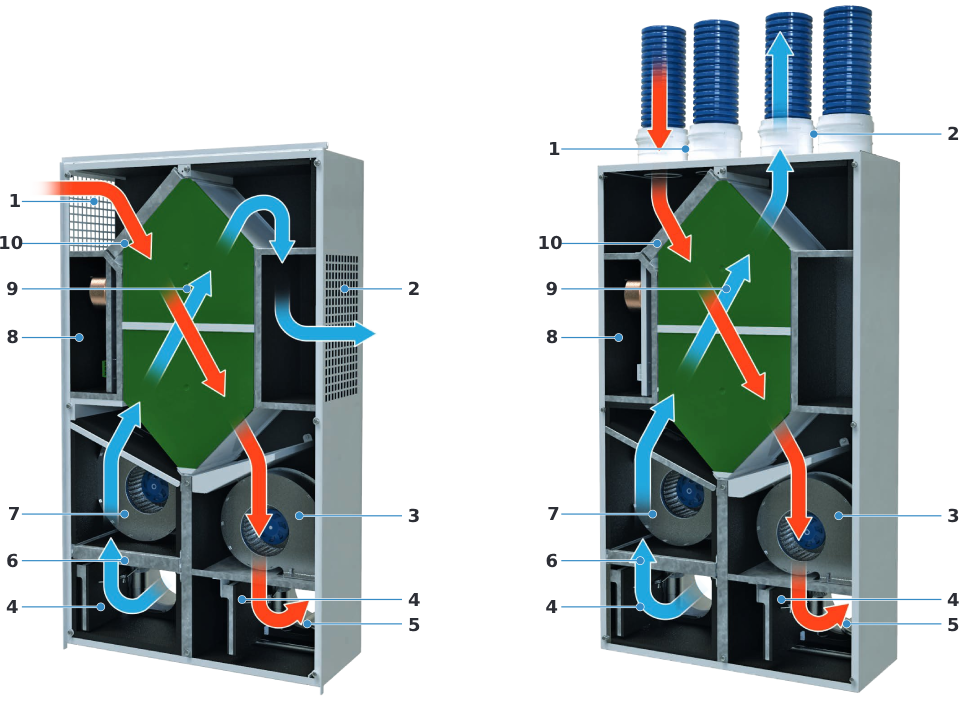

MICRA 110 (WALL SURFACE MOUNTING)
  1. Extract grille;
  2. Supply grille;
  3. Exhaust fan;
  4. Automatic air shutter;
  5. Drain pipe (HRV version);
  6. Supply filter;
  7. Supply fan;
  8. Controller;
  9. HRV or ERV core;
  10. Extract filter.

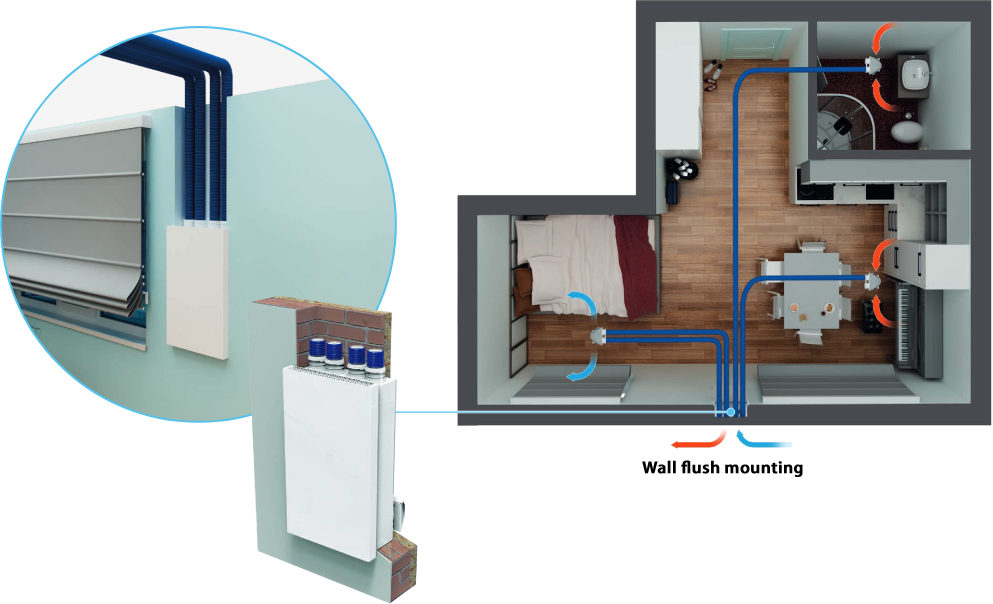

MICRA 110 V1 (WALL FLUSH MOUNTING)
  1. Extract ducts;
  2. Supply ducts;
  3. Exhaust fan;
  4. Air shutter (option);
  5. Drain pipe (HRV version);
  6. Supply filter;
  7. Supply fan;
  8. Controller;
  9. HRV or ERV heat exchanger;
  10. Extract filter.

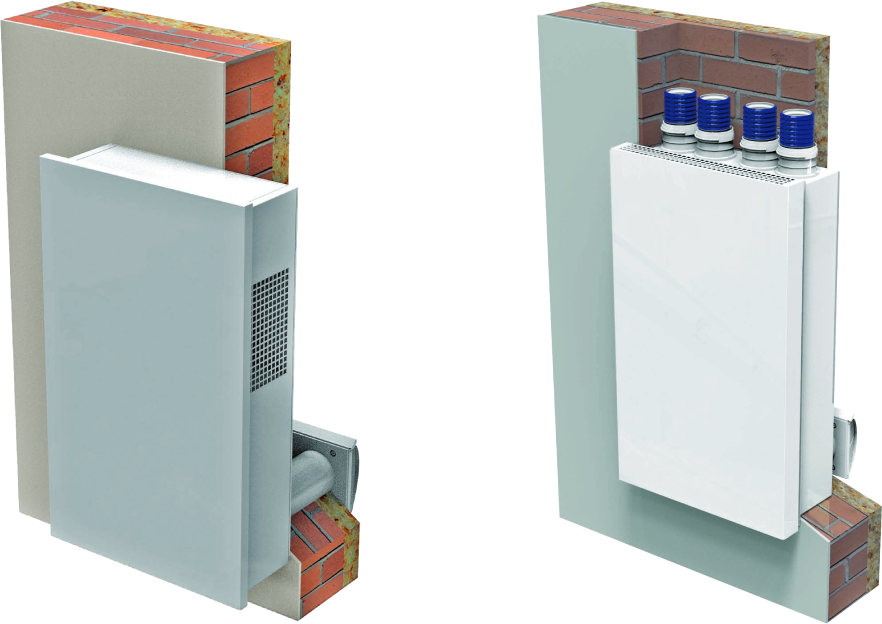

MOUNTING

AUTOMATION AND CONTROL
Control panel on the side surface of the unit
Functions:
  • On / off
  • Speed switching
  • Heat recovery mode
  • Summer cooling mode
  • Filter maintenance indication
  • Alarm indication
TYPE SOLUTIONS
Lineup Vents Micra 110 Rated power, W Maximum airflow, m3/h Sound pressure level LpA at 3 m, dB(A) Heat recovery efficiency, % Enthalpy heat exchanger Control Mounting
Vents Micra 110 Vents Micra 110
31 100 31 93 Built-in control panel
Remote Control
Wired control panel 		Wall
Vents Micra 110 V1 Vents Micra 110 V1
31 100 31 93 Built-in control panel
Remote Control
Wired control panel 		Flush
