Series Vents Uni Max

Series Vents Uni Max - Advanced - Decentralized HRU for residential and commercial buildings
Wall-mounted AHU with an enthalpy heat exchanger and an air flow of up to 200 m³/h
  • Heat exchanger type: Counter flow
  • Sound-insulated casing
  • Motor type: EC
  • Bypass: Auto
  • BMS protocol: ModBus
  • Humidity sensor: Optional
  • CO2 sensor: Optional
  • VOC sensor: Optional
FEATURES
  • Efficient decentralized ventilation unit for small offices or conference rooms.
  • Visible ceiling suspended installation.
  • A version with electrical preheater is available for cold climate.
  • Clean air due to the use of an ePM1 70% / F7 filter for supply air filtration.
  • Possibility to connect fresh air inlet and exhaust air ducts at top or back side of the unit.
  • Low noise operation from 16 dB(A) at 3m.
  • High level of comfort due to builtin bypass and air dampers.
CASING
The casing is made of galvanized sheet metal with white painted decorative cover. The contemporary design of the Uni Max unit will seamlessly blend into any interior. The unit is heat- and sound-insulated with a 20 mm layer of foam. The service panel is easy to open for filter maintenance. The unit is equipped with two Ø125 mm spigots for fresh air intake and stale air exhaust. The position of the spigots can be changed from horizontal to vertical.
FANS
The units feature high-performance, electronically commutated (EC), external rotor motors with forward curved blades. These state-of-the-art units offer excellent energy efficiency. In addition to that, EC motors combine high performance and optimum control over the entire speed range. EC motors have an excellent power efficiency (up to 90 %).
AIR DAMPERS
The Uni Max unit is equipped with two automatic air dampers, which close automatically when the unit is off to prevent drafts.
PREHEATING
The Uni Max E S21 units are equipped with an electrical preheater to prevent heat exchanger freezing in the cold climate.
BYPASS
The Uni Max units are equipped with a bypass for summer cooling by the cool air from outside.
HEAT RECOVERY
The Uni Max unit is equipped with a plate counter-flow polystyrene heat exchanger for heat recovery. The unit condensate is collected and drained to the drain pan under the heat exchanger.

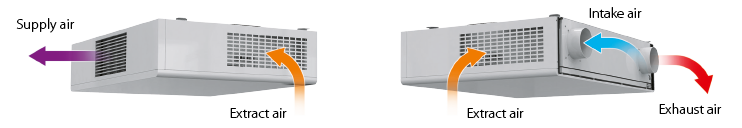

AIR DISTRIBUTION
CONTROL AND AUTOMATION
  • The Uni Max А21 units are equipped with an integrated automation system. The remote control panel is not included in the delivery set (sold separately).
  • The А21 controller allows integrating the unit into the Smart Home system or BMS (Building Management System). Unit control via Wi-Fi using the mobile application Vents AHU.
  • The Uni Max А14 units are equipped with an integrated automation system and the А14 wall mounted sensor control panel with LED-indication.

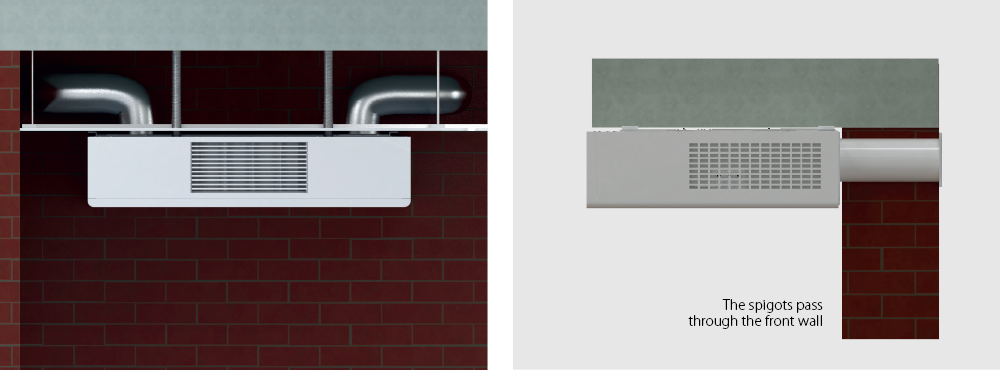

MOUNTING
Lineup Vents Uni Max Connected air duct size, mm Rated power, W Maximum airflow, m3/h Control system Reheater BMS protocol
Vents Uni Max A14 Vents Uni Max A14
125 58 160 A14 ModBus
Vents Uni Max ERV A14 Vents Uni Max ERV A14
125 58 160 A14 ModBus
Vents Uni Max A21 Vents Uni Max A21
125 58 160 ModBus
Vents Uni Max E A21 Vents Uni Max E A21
125 58 160 Electric ModBus
Vents Uni Max ERV A21 Vents Uni Max ERV A21
125 58 160 ModBus
Vents Uni Max E ERV A21 Vents Uni Max E ERV A21
125 58 160 Electric ModBus
Datasheet
"VENTS Uni Max" product description 02-2023
1.61 Mb
Manual
"VENTS Uni (Max)" user's manual 10-2024 (V231EN-02)
4.02 Mb
BIM/CAD models
Uni Max
844 Kb
